Imagine you’re in the middle of a sweltering summer day, seeking refuge from the scorching heat in your cool, air-conditioned home. Ever wonder how those miraculous machines, known as AC units, actually work their magic? In this article, we’ll demystify the inner workings of AC units, shedding light on the science behind how they keep us comfortable and beat the summer heat. From the captivating process of heat exchange to the complex mechanisms of refrigeration, prepare to gain a newfound appreciation for these modern marvels that bring us relief during the hottest of days. So, let’s embark on a journey to uncover the secrets of how AC units work and unveil the science behind their cooling prowess.
Overview of AC Units
Introduction to AC units
AC units, also known as air conditioning units, are essential for providing relief from hot weather and maintaining comfortable indoor temperatures. These units work by removing heat from the air and cooling it before circulating it back into the room. AC units can be found in various types, each with its own advantages and applications. Understanding the basic components and working principles of AC units will help you make an informed decision when choosing the right one for your needs.
Basic components of an AC unit
AC units consist of several key components working together to achieve efficient cooling. These components include the compressor, evaporator coil, condenser coil, expansion valve, refrigerant, and air handling unit. Each component plays a vital role in the cooling process, and understanding their functions is crucial for comprehending how AC units work.
Types of AC Units
Window AC units
Window AC units are a popular choice for small spaces or single rooms. As the name suggests, these units are installed in a window frame. They comprise a single unit, with all the components integrated into a compact design. Window AC units are relatively easy to install and provide effective cooling for targeted areas.
Split AC units

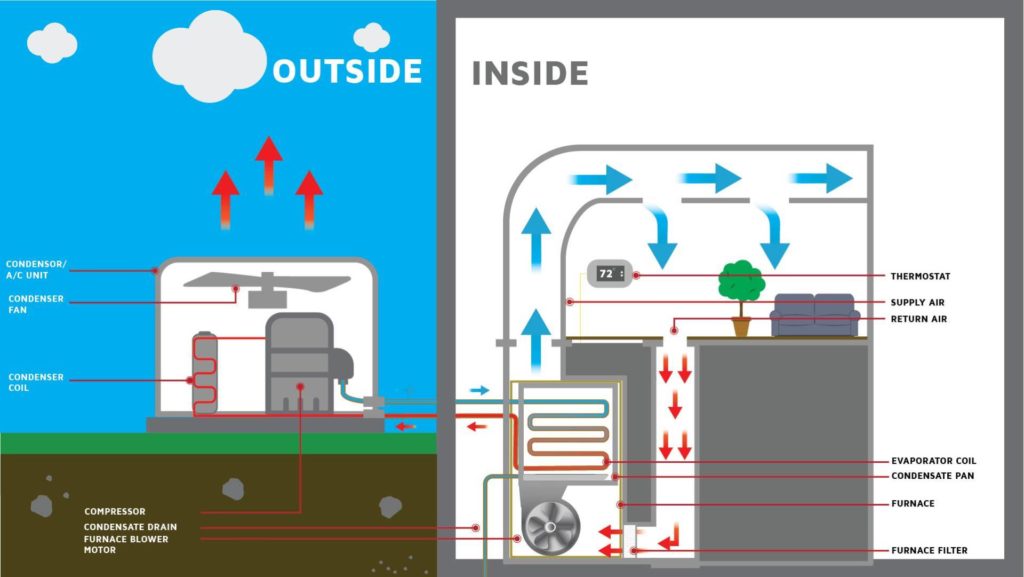

Split AC units consist of two separate components: an indoor unit and an outdoor unit. The indoor unit contains the evaporator coil and the air handling unit, while the outdoor unit houses the compressor and the condenser coil. Split AC units are ideal for cooling larger areas or multiple rooms. They offer the advantage of being energy-efficient and quiet, as the noisy components are placed outside.
Portable AC units
Portable AC units are versatile and convenient options for cooling specific areas. These units can be moved from room to room as needed, as they typically come with wheels for easy mobility. Portable AC units require a vent to direct the hot air outside through a flexible hose. They are suitable for areas where installation of a fixed AC unit is not possible or desired.
Central AC units
Central AC units are designed to cool an entire house or building. They consist of a centralized system that distributes cool air through a network of ducts. Central AC units are typically the most expensive option to install but provide efficient cooling for larger spaces. They offer the advantage of maintaining consistent indoor temperatures throughout the entire building.
Working Principles
Refrigeration cycle
The working principle of AC units is based on the refrigeration cycle. This cycle involves the continuous circulation of refrigerant, which absorbs heat from the indoor air and releases it outside, resulting in cooler air inside the room. The refrigeration cycle consists of four stages: compression, condensation, expansion, and evaporation. Understanding these stages is key to understanding how AC units generate cool air.
Evaporator coil
The evaporator coil is responsible for absorbing heat from the indoor air. It is located inside the AC unit and acts as a heat exchanger. As warm air from the room passes over the evaporator coil, the refrigerant inside the coil evaporates, absorbing heat from the air. This process causes the air to cool down, and the cooled air is then blown back into the room.
Condenser coil
The condenser coil is located in the outdoor unit of a split AC system or on the back of a window AC unit. Its purpose is to release the heat absorbed by the refrigerant. As the heated refrigerant flows through the condenser coil, it condenses back into a liquid form, giving off heat in the process. The heat is dissipated into the outside air, allowing the refrigerant to be ready for the next cooling cycle.
Compressor
The compressor is often referred to as the heart of an AC unit. Its primary function is to circulate and compress the refrigerant, which raises its pressure and temperature. The compressor takes low-pressure refrigerant vapor from the evaporator coil and compresses it into high-pressure vapor, increasing its temperature significantly.
Expansion valve
The expansion valve is a small device located between the evaporator and condenser coils. It regulates the flow of refrigerant into the evaporator coil and controls the pressure and temperature of the refrigerant. When the high-pressure refrigerant leaves the condenser coil, it passes through the expansion valve, causing a drop in pressure. This drop in pressure allows the refrigerant to evaporate and absorb heat from the indoor air.
Refrigerant
Refrigerant plays a crucial role in the cooling process of an AC unit. It is a special fluid that changes from a gas to a liquid and back again, absorbing and releasing heat in the process. The choice of refrigerant depends on factors such as efficiency, safety, and environmental impact. Commonly used refrigerants include hydrochlorofluorocarbons (HCFCs) and hydrofluorocarbons (HFCs).
Air handling unit
The air handling unit is responsible for circulating the cooled air throughout the room or building. It is equipped with a blower fan that draws air from the room, passes it over the evaporator coil to cool it, and then releases it back into the room through air vents or ducts. The air handling unit ensures a steady flow of cool air and helps maintain consistent indoor temperatures.
Refrigeration Cycle
Introduction to the refrigeration cycle
The refrigeration cycle is the fundamental process that enables AC units to cool the air. It is a continuous cycle that removes heat from the indoor air and dissipates it outside the building, resulting in cooler temperatures. This cycle involves the four stages of compression, condensation, expansion, and evaporation, working together to achieve efficient cooling.
Four stages of the refrigeration cycle
-
Compression: The refrigeration cycle starts with the compression stage, where the compressor compresses the low-pressure refrigerant vapor. This compression raises the temperature and pressure of the refrigerant, preparing it for the next stage.
-
Condensation: After the refrigerant is compressed, it flows into the condenser coil, where it releases heat to the outside air. As the refrigerant condenses into a liquid form, it loses heat, which is then dissipated into the surrounding environment.
-
Expansion: The high-pressure refrigerant liquid then passes through the expansion valve, causing a drop in pressure. This drop in pressure allows the refrigerant to expand and evaporate, creating a cooling effect.
-
Evaporation: As the refrigerant evaporates, it absorbs heat from the warm air passing over the evaporator coil. This heat absorption causes the air to cool down, and the cooled air is blown back into the room. The refrigerant, now in a low-pressure gaseous state, returns to the compressor to start the cycle again.
Understanding the refrigeration cycle helps illustrate the continuous process by which AC units cool the air inside a room or building.
Evaporator Coil
Function of the evaporator coil
The evaporator coil serves as a crucial component in the cooling process of an AC unit. Its primary function is to absorb heat from the indoor air and facilitate the cooling process. As warm air from the room passes over the evaporator coil, the refrigerant inside the coil evaporates, absorbing heat from the air. This heat absorption cools the air, allowing it to be circulated back into the room at a lower temperature.
Cooling process at the evaporator coil
The cooling process at the evaporator coil begins with the refrigerant in a low-pressure gaseous state. As warm air from the room is drawn into the AC unit, it passes over the evaporator coil, causing the refrigerant to absorb heat from the air. This heat transfer process causes the refrigerant to evaporate, changing from a liquid form to a gaseous state. The cool air resulting from the heat absorption is then blown back into the room, providing a comfortable indoor environment.
Condenser Coil
Purpose of the condenser coil
The condenser coil plays a vital role in the refrigeration cycle of an AC unit. Its purpose is to release the heat absorbed by the refrigerant during the cooling process. As the heated refrigerant flows through the condenser coil, it condenses back into a liquid form, giving off heat in the process. The heat released by the condenser coil is dissipated into the outside air, allowing the refrigerant to be ready for the next cooling cycle.
Heat dissipation at the condenser coil
Once the refrigerant reaches the condenser coil, it is in a high-pressure gaseous state. As it passes through the condenser coil, the ambient air flowing over the coil helps to dissipate the heat. The high-pressure refrigerant releases heat energy to the surrounding environment, causing it to cool down and allowing the refrigerant to condense into a liquid. This heat dissipation process ensures that the refrigerant is ready to absorb heat again during the next cycle.
Compressor
Role of the compressor
The compressor is a crucial component of AC units, responsible for circulating the refrigerant and playing a significant role in the cooling process. Its primary function is to compress the refrigerant, which raises its pressure and temperature. By compressing the refrigerant, the compressor prepares it for the next stages of the refrigeration cycle.
Compression and temperature increase
When the refrigerant leaves the evaporator coil, it is in a low-pressure gaseous state. The compressor takes this low-pressure vapor and raises its pressure by compressing it. As the refrigerant gets compressed, its temperature increases significantly. This temperature increase is essential for the condensation process that follows in the next stage of the refrigeration cycle.
Compressor types and operation
AC units can utilize different types of compressors, with reciprocating compressors and rotary compressors being the most common. Reciprocating compressors use a piston-cylinder mechanism, while rotary compressors operate through rotating mechanisms. Both types work on the principle of compression, allowing the refrigerant to circulate through the refrigeration cycle and accomplish the cooling process effectively.
Expansion Valve
Function of the expansion valve
The expansion valve is a small but critical component in the refrigeration cycle of an AC unit. Its primary function is to regulate the flow of refrigerant into the evaporator coil and control the pressure and temperature of the refrigerant. By controlling the refrigerant flow, the expansion valve ensures an efficient and effective cooling process.
Pressure and temperature regulation
As the high-pressure refrigerant leaves the condenser coil, it enters the expansion valve. The expansion valve creates a sudden drop in pressure, causing the refrigerant to expand and cool down. This pressure drop and temperature reduction prepare the refrigerant for the evaporation process. By regulating the flow and maintaining the appropriate pressure within the system, the expansion valve enables the refrigeration cycle to operate smoothly.
Refrigerant
Importance of refrigerant
Refrigerant is a crucial component in the cooling process of an AC unit. It acts as the heat transfer medium, absorbing heat from the indoor air and releasing it outside during the refrigeration cycle. The choice of refrigerant is essential for the overall performance, efficiency, and safety of the AC unit.
Commonly used refrigerants
Several types of refrigerants have been used throughout the history of AC units, each with its advantages and disadvantages. R-22 (hydrochlorofluorocarbon or HCFC) has been widely used, but due to environmental concerns, it has been phased out in many countries. Its successor, R-410A (hydrofluorocarbon or HFC), is now commonly used as it has a lower impact on the ozone layer. Other refrigerants, such as R-32 and R-134a, are also used in specific AC systems.
Environmental considerations
As awareness and concern for the environment have grown, AC units are transitioning towards refrigerants with lower global warming potential (GWP) and ozone depletion potential (ODP). The move towards more environmentally friendly refrigerants aims to reduce the impact of AC units on climate change and the ozone layer. It is important to consider the environmental impact of refrigerants when choosing an AC unit and ensure proper disposal of old refrigerants.
Maintenance and Efficiency
Regular maintenance
Regular maintenance is crucial for the optimal performance and longevity of AC units. It is recommended to have a licensed technician inspect and service your AC unit at least once a year. Routine maintenance tasks include checking refrigerant levels, cleaning coils and filters, and ensuring proper airflow. Regular maintenance helps detect and address any issues early on, preventing costly repairs and ensuring efficient cooling.
Cleaning and filter replacement
Cleaning the AC unit’s coils and filters is an essential maintenance task. Over time, dust and debris accumulate on the coils and filters, reducing the unit’s efficiency. Cleaning the coils and replacing or cleaning the filters ensure proper airflow and prevent the accumulation of dirt or pollutants. This not only improves cooling performance but also contributes to healthier indoor air quality.
Energy efficiency considerations
Energy efficiency is an important factor to consider when choosing an AC unit. Look for units with high energy-efficiency ratings, such as those certified by organizations like ENERGY STAR. Energy-efficient AC units consume less electricity, resulting in lower energy bills and reduced environmental impact. Additionally, consider using programmable thermostats or smart controls to optimize cooling settings and reduce energy consumption further.
In conclusion, understanding how AC units work involves knowledge of their basic components, working principles, and the four stages of the refrigeration cycle. With various types of AC units available, such as window, split, portable, and central, you can choose the one that best suits your needs and space. Regular maintenance, including cleaning and filter replacement, ensures optimal efficiency and extends the lifespan of your AC unit. By considering energy efficiency and environmental factors, you can enjoy cool and comfortable indoor environments while minimizing your ecological footprint.
